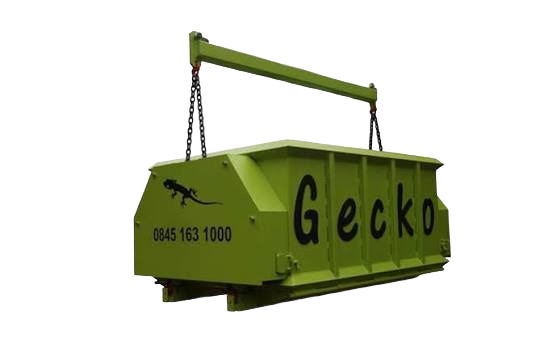

Gecko truckloader

Authorized Supply by DCS Techno Services

Remote controlled discharge directly into trucks, barges or wherever you need it

TruckLoader has been designed to make muck away safer, easier and more efficient. Our unique patented technology allows the skip to be landed and discharged directly into tipper trucks, roll on roll off skips, barges or even onto the floor, no landing gantry required. Now, finally, your site has a viable alternative to the traditional outdated methods like boat and circular muck skips.
No other skip can do what the Gecko Skip can
Applications
Back Filling, Barge Loading, Demolition, Railways, Shaft Sinking, Stock Piling, Basement Digging.
Model TL20 TL30 TL40 TL60 TL110 TL170
Capacity 2000ltr 3000ltr 4000ltr 6000ltr 11000ltr 17000ltr
Loading Height 1200mm 1200mm 15000mm 1600mm 1700mm 2550mm
Overall Width 1650mm 1650mm 1650mm 2100mm 2100mm 2100mm
Overall Length 1900mm 2500mm 2500mm 2900mm 4800mm 4800mm
Overall Height
inc Spreader		 TBA TBA TBA TBA TBA TBA
Skip self weight 1200kg 1300kg 1400kg 2000kg 3200kg 4150kg
Working load limit 4000kg 6000kg 6000kg 12000kg 22000kg 30000kg
Combined weight 5200kg 7300kg 7400kg 14000kg 25200kg 34150kg
Skip Loads by truck
(based on 8 wheeled tipper)		 6 4 3 2 1 N/A
