Mini Excavator Series (DX20 | DX30 | DX45)

At DCS Techno Service, we provide high-performance, reliable, and efficient mini excavators designed to deliver power and precision for every job site. Our DX-Series machines — DX20, DX30, and DX45 — are engineered with advanced Yanmar engines, robust hydraulic systems, and durable components to ensure maximum productivity and long operational life.
Whether you work in construction, landscaping, urban maintenance, or utility projects, the DX-Series offers the right balance of power, control, and versatility.

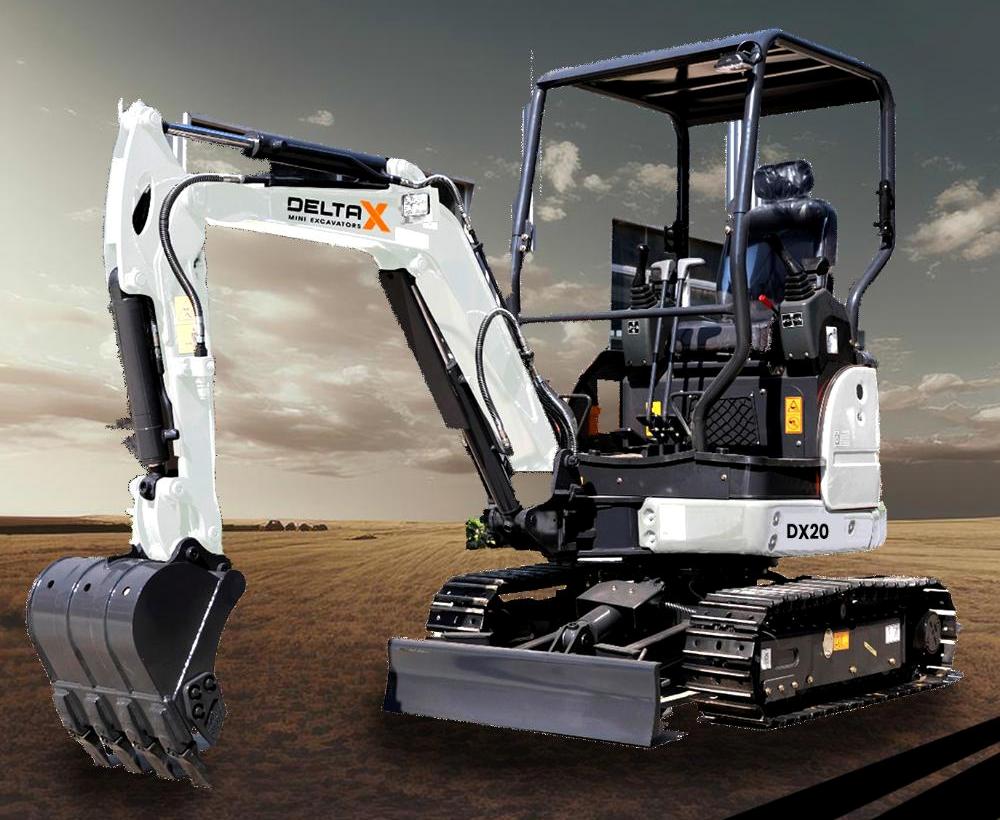

DX20

Compact, Agile & Powerful

  • Best for - Small construction sites, tight spaces, farms, landscaping
The DX20 mini excavator is engineered for operators who need strength in tight working environments. Compact yet powerful, it offers smooth hydraulics, stable operation, and efficient fuel performance.

Key Features

  • Yanmar engine with 14.6 kW (19 hp)
  • 2,000 kg operating weight
  • 0.06 m³ bucket capacity
  • 30° climbing capability
  • Track extension & retraction for narrow spaces
  • Smooth platform rotation

Specifications

Hydraulic Pressure 18 MPa
Driving Speed 2.8 km/h
Traction Force 16 kN
Length 3400 mm
Width 1100 mm
Height 2200 mm
Max Excavation Height 3350 mm
Maximum Digging Depth 2042 mm
Digging Radius 3600 mm
Dump Height 2250 mm

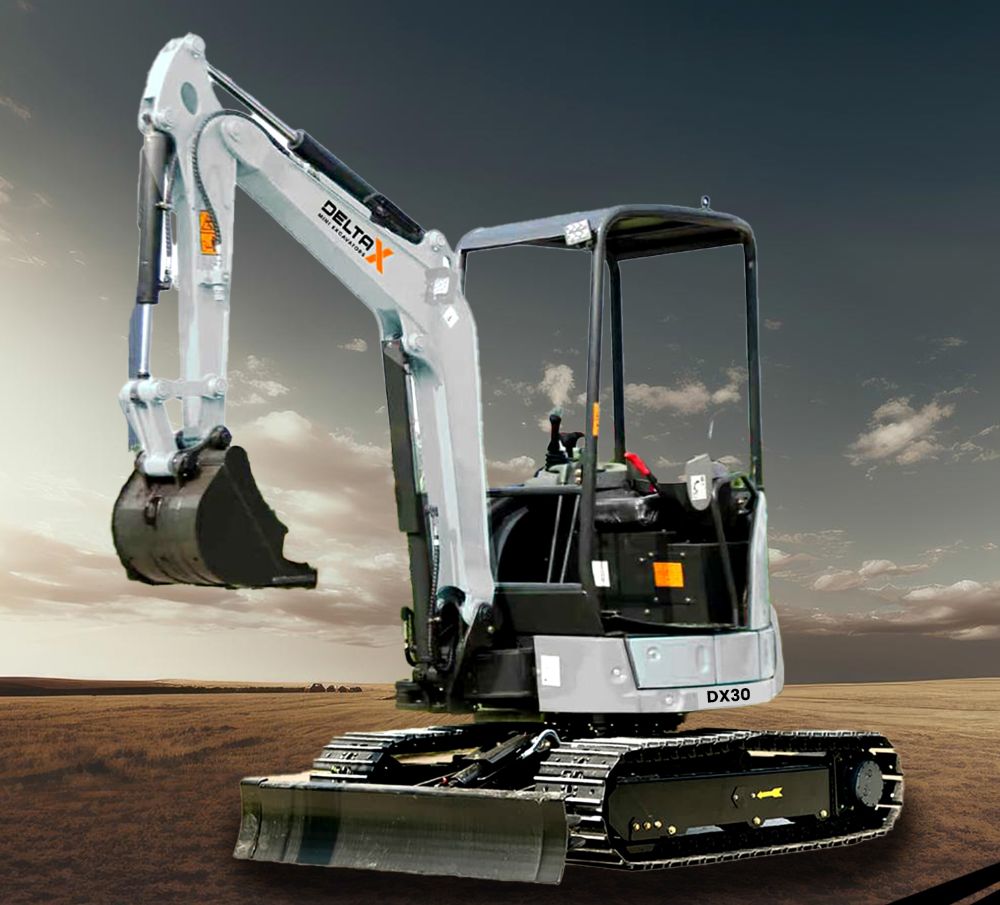

DX30

Versatility With High Performance

  • Best for: Construction contractors, utility workers, urban infrastructure jobs
The DX30 is a balanced mini excavator offering power, precision, and agility. Its enhanced hydraulic performance ensures faster cycle times and improved work efficiency.

Key Features

  • 16.6 kW (22 hp) Yanmar engine
  • 3,000 kg operating weight
  • 0.1 m³ bucket capacity
  • Fast rotation speed (13.5 r/min)
  • Excellent digging range for mid-size jobs

Specifications

Length 4050 mm
Width 1540 mm
Height(Cab) 2360 mm
Max Excavation Height 3865 mm
Dump Height 2760 mm
Maximum Digging Depth 2560 mm
Vertical Dig Depth 2440 mm
Digging Distance 4375 mm
Bucket Digging Force 18.6 kN
Ground Clearance 255 mm
Track Shoe Width 250 mm

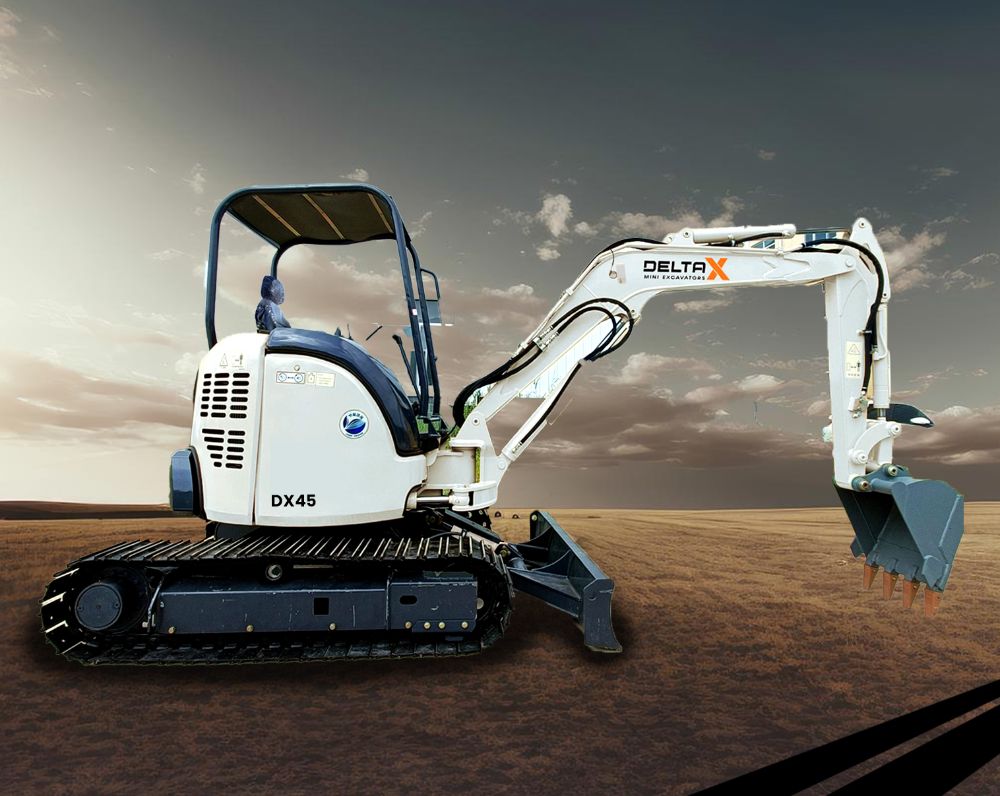

DX45

Heavy-Duty Performance in a Compact Frame

  • Best for: Road construction, commercial infrastructure, heavy-duty excavation
The DX45 is the most powerful excavator in the DCS mini excavator lineup. Built for demanding applications, it combines exceptional hydraulic strength with a robust, stable build.

Key Features

  • 19.6 kW (28 hp) Yanmar engine
  • 4,200 kg machine weight
  • Strong hydraulic system with Nabtesco valves
  • 0.11 m³ bucket capacity
  • Excellent digging force & ground stability

Specifications

Bucket Digging Force 20.3 kN
Turning Speed 10 r/min
Ground Pressure 32.7 kPa
Maximum Excavation Height 5000 mm
Digging Depth 3410 mm
Digging Radius 5300 mm
Dump Height 3350 mm
Length 4825 mm
Width 1740 mm
Height 2500 mm
Ground Clearance 290 mm
Track Width 300 mm
Boom Length 2105 mm
